Analog Switches

The AL2201 digital matrix switch for routing, distributing, and/or converting various signal types as an interface between telemetry and communications equipment such as bit syncs, receivers, recorders, and decommutators. It is an ideal and cost effective alternative to a patch panel.

The AL2202 100Mhz analog matrix switch for routing and distributing between telemetry and communications equipment such as receivers, demodulators, bit syncs, and recorders. It is an ideal and cost effective alternative to a patch panels.

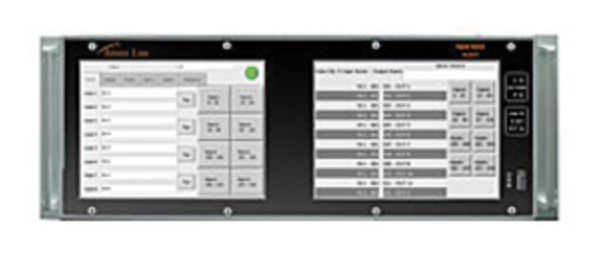

The AL2273 is a fully non-blocking matrix switch capable of accommodating matrices ranging from 16 inputs x 16 outputs up to 256 inputs x 256 outputs. The modular design allows for an asymmetrical configuration of I/O modules, such as 128 x 256. Signal types supported include TTL, RS-422, and low speed analog. The digital I/O modules can be used together in any combination allowing both switching, signal conversion, and signal distribution.

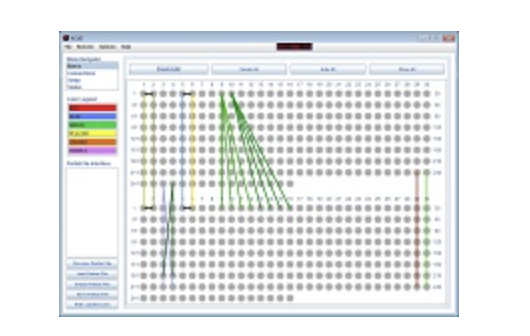

ACxIS is a Java based, OS-independent program which controls the Apogee Labs AL2273 & AL2201 Digital Switches and the Apogee Labs AL2202 Analog Switch via Ethernet remote control. ACxIS provides an intuitive interface for making and breaking connections as well as added features for building complex configurations.
